Careers Coke Drum Repair Services
Coke drums in delayed coking units operate under extreme cyclic conditions, with repeated heating and quenching driving severe thermal stress across the vessel.
Over time, this leads to fatigue damage, most critically in shell welds, skirt attachments, and lower drum sections. If not properly managed, this damage progresses into cracking, distortion, and unplanned outages.
At IGS, we deliver engineered coke drum repair solutions – including crack repair, structural reinforcement, and critical component replacement – designed to restore integrity, manage fatigue damage, and extend operational life between turnarounds.
Common Coke Drum Damage
and Failure Symptoms
Coke drum damage typically develops gradually under cyclic operation, appearing first as visible defects in critical areas.
-
Shell and seam cracking
-
Bulging and deformation
-
Skirt weld failures
-
Unscheduled shutdowns
What Causes Coke Drum Failure
Coke drums do not fail due to pressure alone. The dominant damage mechanism is low-cycle thermo-mechanical fatigue caused by repeated heating and quenching during operation.
-
Thermo-Mechanical Fatigue (Primary Failure Driver)
Rapid temperature changes create severe thermal gradients through the drum wall. These gradients generate cyclic stresses that can exceed the material’s yield strength—especially at welds and stress concentrators.
Over time, this leads to:
- Crack initiation at high-stress locations
- Progressive crack growth through the shell
- Structural weakening over repeated cycles
-

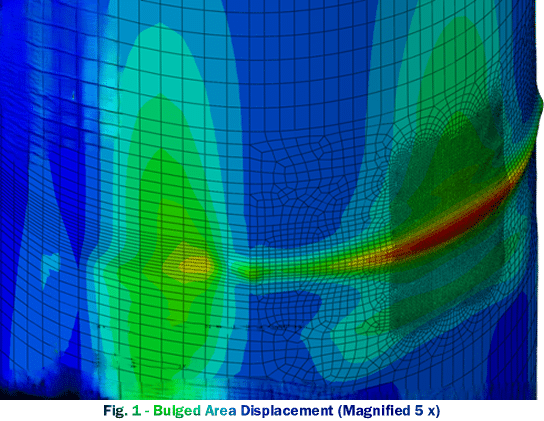

Bulging and Strain Accumulation
Repeated thermal loading causes incremental plastic deformation of the shell, resulting in bulging.
While bulging itself is not always critical, it is a strong indicator of fatigue damage and is closely linked to:
- Increased stress concentration
- Accelerated crack initiation and propagation
-
Critical Stress Locations
Fatigue damage is not uniform. It concentrates in specific areas, including:
- Circumferential and longitudinal shell welds
- Skirt-to-shell attachment welds
- Bottom cone and nozzle connections
The skirt attachment is particularly vulnerable, as it restricts thermal expansion and creates localized stress concentrations.
Corrosion and Cladding Damage (Secondary Effects)
Corrosion and erosion, especially in lower sections, can contribute to damage by reducing wall thickness and fatigue resistance. However, these are typically secondary mechanisms that accelerate failure rather than cause it.
Where Repair Strategy Matters
Effective coke drum repair is not just about removing visible defects – it must address the underlying fatigue mechanisms driving damage.
As highlighted by IGS welding expert Yelena, coke drum integrity depends on understanding how damage develops over time:
“Coke drums fail due to cyclic thermal shock and strain accumulation. Cracking and bulging are symptoms of fatigue – not isolated defects – and repairs must address these mechanisms to be effective.”
IGS repair strategies are designed to:
- Stabilize areas affected by cyclic strain
- Mitigate stress concentration in critical zones
- Restore structural integrity where required
- Enable reliable performance across multiple operating cycles
“Coke drums fail due to cyclic thermal shock and strain accumulation. Cracking and bulging are symptoms of fatigue – not isolated defects – and repairs must address these mechanisms to be effective.”
Our Coke Drum Repair Services
We deliver full-scope repair programs tailored to your turnaround schedule and asset condition:
-
ID Weld Overlay
-
Shell Crack Repairs
-
Seam Weld Crack Repairs
-
Skirt Weld Joint Crack Repairs
-
Skirt Replacement
-
Shell Section Replacement
-
Structural Reinforcement Weld Overlay
-
Cone Section & Delta Valve Replacement
-
Keyhole Repairs
Each repair is engineered for durability under demanding thermal cycling conditions, helping to maintain performance between planned turnarounds while minimizing operational disruption.
The IGS Advantage
Superior Project Management
98.6% on-schedule delivery rate across 400+ global turnarounds.
Safety-First Execution
Our industry-leading safety program protects your team and assets.
No PWHT Needed
Advanced temper bead welding eliminates the need for post-weld heat treatment.
Machine Welding Expertise
Controlled heat input and chemistry ensure weld integrity and reliability.
Parallel Drum Work
We enable flexible, multi-unit turnarounds to reduce overall downtime.
Expert Insight in Coke Drum Integrity
Understanding coke drum damage requires a combination of materials science expertise and real-world operating experience.
Our specialists combine:
- Field inspection data from operating units
- Deep understanding of thermo-mechanical fatigue mechanisms
- Practical execution experience across global refinery turnarounds
Explore our latest insights on coke drum reliability and repair strategies:
- Causes of Coke Drum Cracking and Fatigue Damage
- Managing Bulging and Structural Integrity in Coke Drums
- Welding Strategies for Coke Drum Life Extension
- Expert insights from Yelena
Speak to an Expert
Coke drum repair strategies must be tailored to each unit’s operating conditions and damage profile.
Selecting the right approach depends on:
- Severity of thermal cycling
- Extent of fatigue damage and bulging
- Remaining wall thickness and integrity (FFS)
- Turnaround duration and operational constraints
Get guidance on the most effective repair strategy for your coke drum
I’m here to help
Colin Bateman
IGS Subject Matter Expert
Trusted by Global Operators Since 1978
From refineries to petrochemical plants, IGS supports the world’s largest industrial operations with field-proven coke drum repair strategies and long-term asset management.
What You Can Expect
-
Extended Asset Life – Over 20+ years of added service life with properly executed repairs.
-
Improved Reliability – Reduced risk of unplanned outages caused by fatigue cracking.
-
Faster Turnarounds – We align with your outage schedule to complete critical repairs efficiently, helping reduce downtime without compromising weld quality.
-
Minimized Future Repairs – Our repair methods address root causes of damage to improve long-term reliability and reduce recurring issues.
Why Choose IGS?
At IGS, we deliver measurable value through our proprietary technologies, fostering long-lasting partnerships built on efficient execution and excellence.
- Industry-Leading Technology: Proprietary Welding, Metalspray™, & HVTS® technologies ensure consistent quality
- Safety First: Industry-leading safety standards
- Trained Specialists: Full-time specialized workforce with extensive experience
- Proven Track Record: 40+ years’ experience across 500+ annual projects in 105 global locations
- Superior Project Management: Expert planning and execution that minimizes turnaround time
- Comprehensive Preparation: Our detailed planning process means we execute faster with fewer surprises
- Advanced Alloy Expertise: In-house laboratory for testing and pre-qualification of specialty alloys
Contact our team of experts to discuss your specific challenges.
WATCH VIDEO: Automated Welding Services
Extend Asset Life. Minimize Downtime. Ensure Safety.
Free consultation with an IGS Subject Matter Expert
